LR041777 Land Rover Range Rover L322 02-12 AMK Compressor Assembly New
| Place of Origin | China |
| Brand Name | FHD |
| Certification | ISO 9001 |
| Model Number | Range Rover L322（02-12） |
Land Rover Range Rover L322 air compressor
,AMK compressor assembly for Range Rover
,new automotive air compressor with warranty

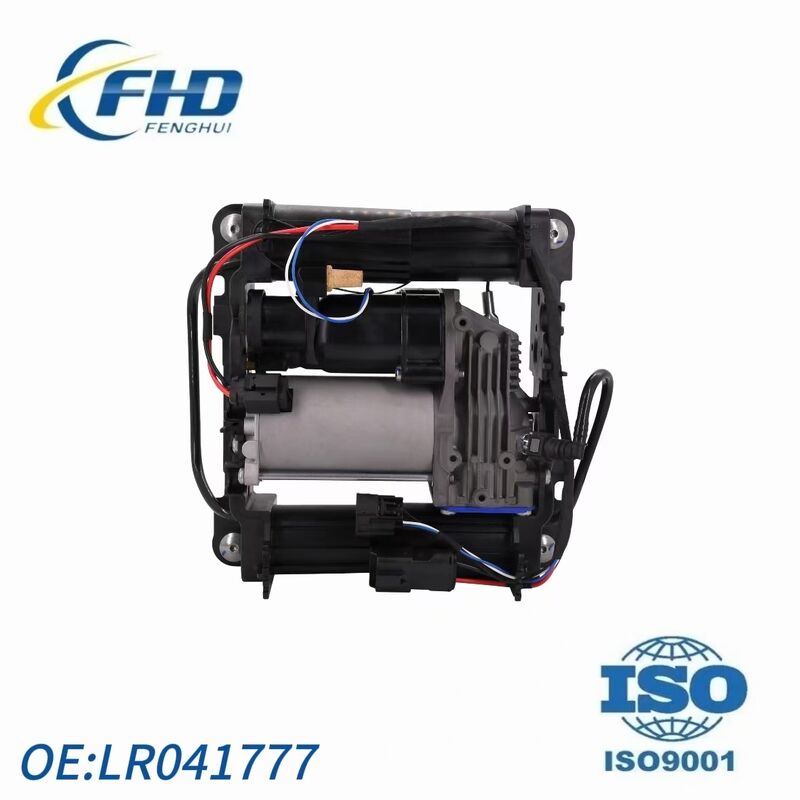

The LR041777 is an original-equipment-grade air suspension compressor assembly developed specifically for the Land Rover Range Rover L322, manufactured by AMK. This component serves as the core power source for the vehicle's EAS (Electronic Air Suspension) system, responsible for continuously supplying high-pressure compressed air to the air springs to maintain the standard ride height and driving stability, while also supporting Land Rover's iconic all-terrain off-road capability.
As one of Land Rover's OE suppliers for this component, AMK manufactures this compressor to strict original equipment standards, fully complying with Land Rover's original design requirements in terms of material selection, manufacturing precision and durability testing. This product is supplied as a complete assembly including the mounting bracket, and comes standard with an integrated air dryer, relay and electrical connector for a quick plug-and-play installation.
When the original compressor suffers performance degradation due to system leaks, prolonged wear or electrical faults, this brand-new AMK unit represents the most reliable replacement solution for restoring the EAS system to full working order.
| Parameter | Specification |
|---|---|
| Brand | AMK (OE Original Supplier) |
| Product Condition | Brand New |
| Installation Type | Complete Assembly with Bracket, Direct Replacement |
| Maximum Operating Pressure | 180 PSI |
| Dryer | Integrated Maintenance-Free |
| Relay | Included |
| Thermal Overload Protection | Built-in |
| Operating Voltage | 12V |
This product is compatible with Land Rover Range Rover L322 (2006-2012 model years, from chassis number 6A198058 onwards) equipped with the AMK-type air suspension system, covering the following specific configurations:
| Model | Chassis Code | Model Years |
|---|---|---|
| Range Rover L322 (including Vogue) | L322 | 2006-2012 |
| Range Rover L322 Supercharged | L322 | 2006-2012 |
| Range Rover Westminster Edition | L322 | 2008 |
| Range Rover Autobiography | L322 | 2011-2012 |
| Range Rover HSE Lux | L322 | 2012 |
| Number Type | Part Number |
|---|---|
| Primary OE Number | LR041777 |
| Associated OE Number | LR010375 |
| Associated OE Number | LR015089 |
| Associated OE Number | LR025111 |
| Associated OE Number | LR033311 |
| Associated OE Number | LR038109 / LR038110 / LR038111 |
| Associated OE Number | LR038112 / LR038113 / LR038147 |
| Associated OE Number | RQG500040 / RQG500041 / RQG500100 / RQG500140 |
| Associated OE Number | RQU500731 |
| Arnott Equivalent | P-3232 |
- Genuine OE Quality: Manufactured by AMK, one of Land Rover's OE suppliers for this component. Quality is identical to the Land Rover Genuine Part.
- Complete Assembly with Bracket: This product is supplied as a complete assembly including the mounting bracket, and comes standard with a relay and integrated air dryer - no additional accessories needed, enabling a quick plug-and-play installation.
- Thermal Overload Protection: Built-in thermal overload protection automatically cuts power when the compressor operates continuously for an extended period or detects abnormally high temperatures, protecting the motor from permanent damage.
- Integrated Air Dryer: Comes standard with a maintenance-free integrated air dryer that effectively removes moisture from the compressed air, preventing internal corrosion within the air lines and extending the service life of the entire air suspension system.
- Low Maintenance: Maintenance-free design with a compact, lightweight structure, offering energy-efficient operation and low noise levels.
Keep dry, clean and handle with care.
