Mercedes W223 2WD Front Right Air Strut OEM A2233208803 ISO 9001 Certified Air Suspension Strut

Mercedes W223 2WD Front Right Air Strut OEM A2233208803 ISO 9001

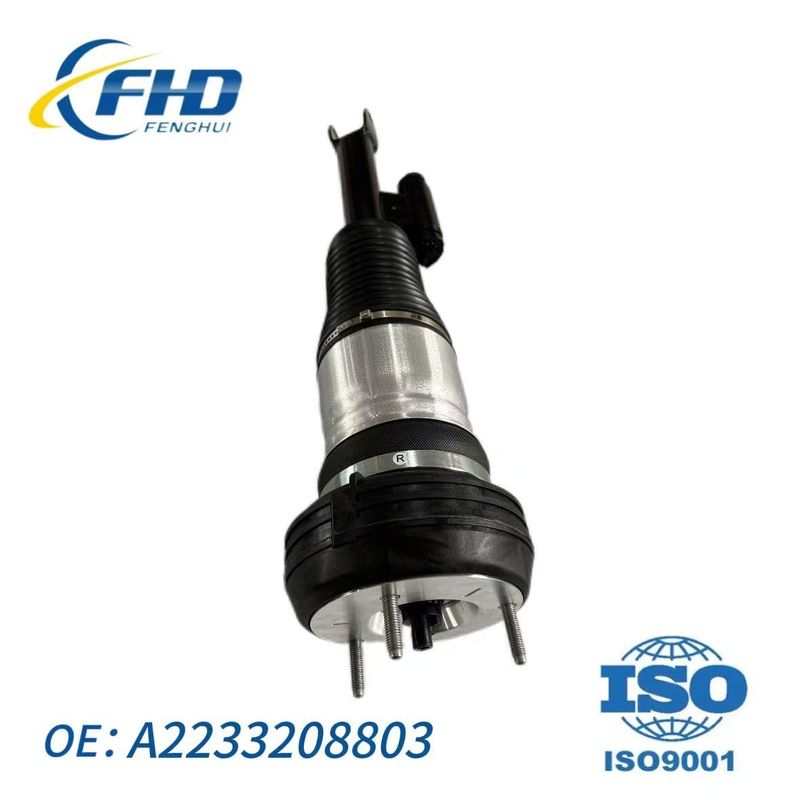

Air Suspension Strut Assembly – Front Right

OE Reference: A2233208803
Vehicle Application: Mercedes-Benz W223 S-Class, 2WD, Front Right (2021–)

Product Description

This air suspension strut is a direct-fit OE-grade replacement engineered specifically for the front-right corner of the Mercedes-Benz W223 S-Class two-wheel-drive models. It is not a generic aftermarket copy, but a precision component built to factory geometry, air-spring rate, and damping curves — ensuring that the vehicle's AIRMATIC system responds exactly as Mercedes-Benz intended.

Designed for 2WD chassis only (not compatible with Maybach or 4MATIC variants), this strut accommodates the specific front-axle load and weight bias of rear-wheel-drive W223 models. It combines the load-carrying function of an air spring with the oscillation-damping role of a shock absorber in a single compact assembly, actively managing ride height, roll stiffness, and compression/rebound response in real time.

At highway speeds, the system automatically lowers the body to reduce aerodynamic drag and improve stability. Under heavy loads, the strut adjusts internal pressure to maintain level stance and balanced weight distribution across the rear axle. Every performance parameter — from air volume to valve response timing — is locked to OE specifications, so the replacement part behaves indistinguishably from the original when the vehicle left the factory.

Key Features

• Chassis-Specific Tuning – Calibrated exclusively for W223 2WD front-right fitment. Not a "universal" part; damping and spring curves match the original 2WD suspension geometry.

• Active Ride Control – Continuously adapts to road conditions, vehicle speed, and payload. Lowers body at high velocity for improved aerodynamics; levels the chassis under uneven loading.

• OE-Grade Materials – Constructed with cold-weather-resistant rubber bellows, precision-crimped steel housings, and full-surface anti-corrosion treatment. Designed to withstand extreme temperatures (-40°C to +80°C) and repetitive compression cycles without degradation.

• Factory-Matched Performance – Produced under ISO 9001-certified processes, with each unit verified for air retention, damping linearity, and noise suppression (≤ 65 dB). Provides a true plug-and-play solution requiring zero modifications.

Technical Specifications

Warehouse & Workshop

Keep dry, clean and handle with care.

Packing & Delivery

Professional, environmentally friendly, and efficient packaging services ensure the safety of your goods during transit.

Frequently Asked Questions

Q1: After installation, the left and right ride heights are uneven. What could be wrong?

This is typically caused by one of two issues: either the system has not been recalibrated after fitment, or there is a minor air leak at the connection points. Use a Mercedes-compatible diagnostic tool (e.g., XENTRY) to perform a ride-height reset and level calibration. Then inspect all air-line fittings and O-rings for proper sealing. Once the system is recalibrated and leak-free, the vehicle should return to factory-spec leveling.

Q2: The suspension does not adjust height or stiffness automatically after installation. Why?

The most common cause is an incomplete electrical connection. Verify that the wiring harness plug is fully seated and locked into the strut's solenoid connector. Also ensure the air line is routed without sharp bends or pinch points. After confirming physical connections, clear any stored fault codes using a diagnostic scanner and perform a key-cycle reset (ignition off, wait, restart). The adaptive functions should then reactivate normally.

Q3: There is knocking noise and harsh rebound during driving. What should I check?

These symptoms often point to improper installation torque or mixing components from different chassis versions. Confirm that all mounting bolts are tightened to Mercedes-Benz factory torque specifications (refer to W223 workshop manual). Also verify that the strut is the correct 2WD front-right unit (A2233208803) — using a 4MATIC or Maybach version on a 2WD chassis can cause mismatched damping characteristics and abnormal noise. If installation is correct and the noise persists, inspect the strut's upper mount bearing for wear.
