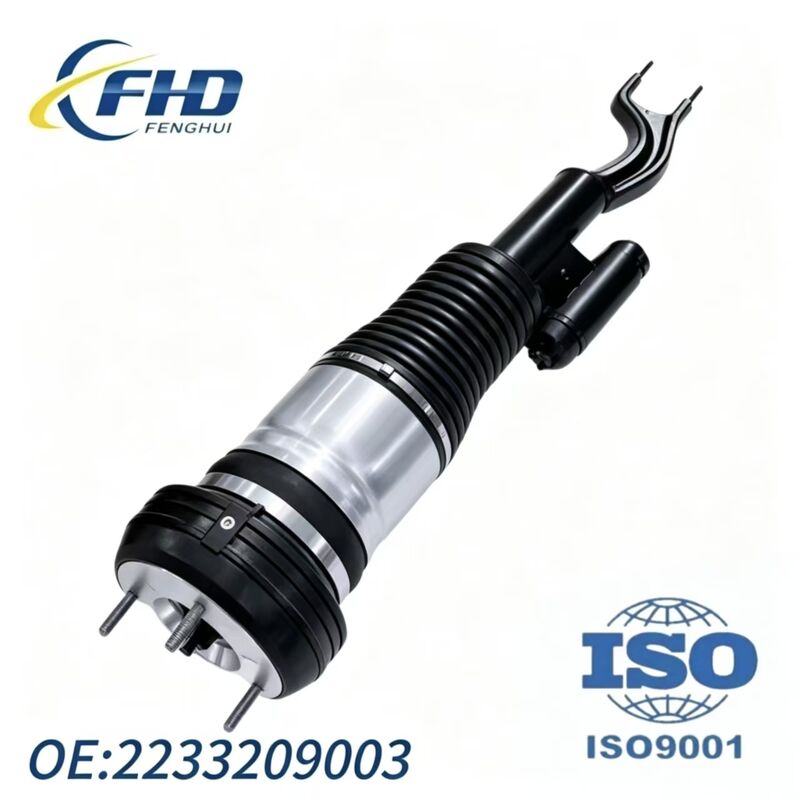

OEM A2233209003 Air Suspension Strut for Mercedes 223 4WD Front Right
|
OEM A2233209003 Air Suspension Strut for Mercedes 223 4WD Front Right
| Place of Origin | China |
| Brand Name | FHD |
| Certification | ISO 9001 |
| Model Number | Mercedes 223 4WD |
Product Details
OE NO.:
A2233209003
Warranty:
2 Years
Position:
Front/R
Condition:
New
Car Model:
Mercedes 223 4WD
Purpose:
For Replace/ Repair
Highlight:
Mercedes 223 air suspension strut
,OEM A2233209003 suspension strut
,4WD front right air strut
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
Carton
Delivery Time
3-15days
Payment Terms
D/A,D/P,T/T,Western Union
Supply Ability
5000 Sets/month
Product Description
OEM A2233209003 Air Suspension Strut for Mercedes 223 4WD Front Right
Product Overview
OEM A2233209003 Air Suspension Strut for Mercedes 223 4WD Front Right
- Air Suspension Strut Assembly - Front Right (4MATIC)
- OE Reference: 2123203138
- Vehicle Fitment: Mercedes-Benz W223 S-Class, 4MATIC (All-Wheel Drive), Front Right
System Integration & Engineering Background
This air suspension strut is purpose-built for the Mercedes-Benz W223 S-Class 4MATIC platform, specifically configured for the front-right corner. It is engineered to harmonize with the vehicle's Continental CAirS (Compact Air Supply System) — a highly integrated, modular air supply unit that combines the compressor, valve block, control electronics, and dryer into a single lightweight assembly. This system architecture reduces overall package volume and weight, simplifies chassis layout, and ensures consistent pneumatic performance across all operating conditions.
The strut itself is tuned to the specific load characteristics of the 4WD front axle, accounting for the additional mass of the front differential and half-shafts. When combined with the CAirS module's real-time pressure regulation, the system delivers instantaneous ride-height adjustments, adaptive damping, and automatic load leveling — all while maintaining the ride composure expected of a flagship Mercedes-Benz sedan.
Key Technical Highlights
- CAirS System Compatibility — Fully integrated with the Continental CAirS air supply module, ensuring precise pressure delivery and responsive valve actuation for quick leveling and height changes.
- 4MATIC Front-Axle Tuning — Calibrated for the weight distribution and suspension geometry of all-wheel-drive W223 models. Not compatible with 2WD or Maybach variants.
- Modular-Friendly Design — Compact construction reduces installation complexity and aligns with the space-saving layout of the W223 engine compartment.
- All-Weather Operation — Rated for -30°C to +80°C ambient conditions; features low-temperature-resistant rubber compounds and anti-ice air-line protection.
- Quality Assurance — Manufactured to OE tolerances with ISO 9001-certified processes; each unit undergoes air-tightness and damping-force validation before shipment.
Technical Specifications
| Parameter | Detail |
|---|---|
| OEM Number | 2123203138 |
| Chassis | W223 (Mercedes-Benz S-Class) |
| Drive Configuration | 4MATIC - All-Wheel Drive (not for 2WD) |
| Position | Front Right (Passenger Side) |
| Air Supply Integration | Continental CAirS compatible |
| Operating Temperature | -30°C to +80°C |
Product Images
Warehouse & Workshop
Keep dry, clean and handle with care.
Packing & Delivery
Professional, environmentally friendly, and efficient packaging services ensure the safety of your goods during transit.
Frequently Asked Questions
Q1: The suspension does not raise or lower after installation. Where should I start troubleshooting?
Begin with the pneumatic circuit: verify that all air-line connections are fully seated and free of leaks. If a leak is detected, re-terminate the connection with fresh O-rings and clips. Next, confirm that the electrical harness to the CAirS control module is securely connected and receiving power. If the physical connections are intact, use a Mercedes-Benz diagnostic system (XENTRY) to interrogate the ADS (Adaptive Damping System) and compressor status — the tool will identify faults such as valve block obstructions, pressure sensor drift, or compressor motor overload.
Q2: Can I install this strut myself, or do I need special tools?
Professional installation is strongly recommended. While the strut is a direct bolt-on component that requires no chassis modifications, the process demands specialized equipment including torque wrenches calibrated to Mercedes specifications, spring-compression tools, and a diagnostic scanner capable of performing AIRMATIC system calibration. Improper handling — such as overtightening the air-line fitting, pinching the bellows during installation, or skipping the electronic reset — can permanently damage the strut or trigger persistent fault codes. For best results, entrust the work to a workshop familiar with Mercedes-Benz W223 suspension systems.
Q3: After installation, the vehicle leans to one side. What causes this?
The most common cause is uneven air pressure between the left and right air springs, often due to skipped system calibration. Use a diagnostic tool to execute the "Ride-Height Reset" and "Load-Leveling Calibration" routines — this allows the CAirS module to redistribute pressure and re-establish a level stance. If the lean persists after calibration, inspect the air spring for damage (punctures or creases) and check the air lines for kinks or obstructions. Damaged components should be replaced immediately, as continued operation may strain the compressor.
Q4: What routine maintenance does this air suspension require to maximize service life?
We recommend a simple preventive maintenance schedule:
- Every 3 months: Inspect all air-line connections for signs of wear, chafing, or leakage.
- Annually: Clean or replace the CAirS air intake filter to prevent debris from entering the compressor.
- Driving habits: Avoid sustained driving on severely potholed or washboard roads to reduce shock loads on the strut.
- Extended storage: If the vehicle is parked for more than 30 days, set the suspension to the mid-height position using the console controls, which reduces static strain on the air-spring bellows.
Q5: Will this strut perform reliably in freezing winter conditions?
Yes. The air spring bladder and air-line materials are formulated for low-temperature operation, with functional testing validated down to -30°C. However, in extreme cold, moisture accumulation in the air system can freeze and obstruct airflow. As a precaution, when ambient temperatures drop below -10°C, we recommend idling the vehicle for 5-10 minutes before driving — this allows the CAirS compressor and dryer to warm up and purge any condensation from the system, ensuring responsive height adjustments from the first motion.
