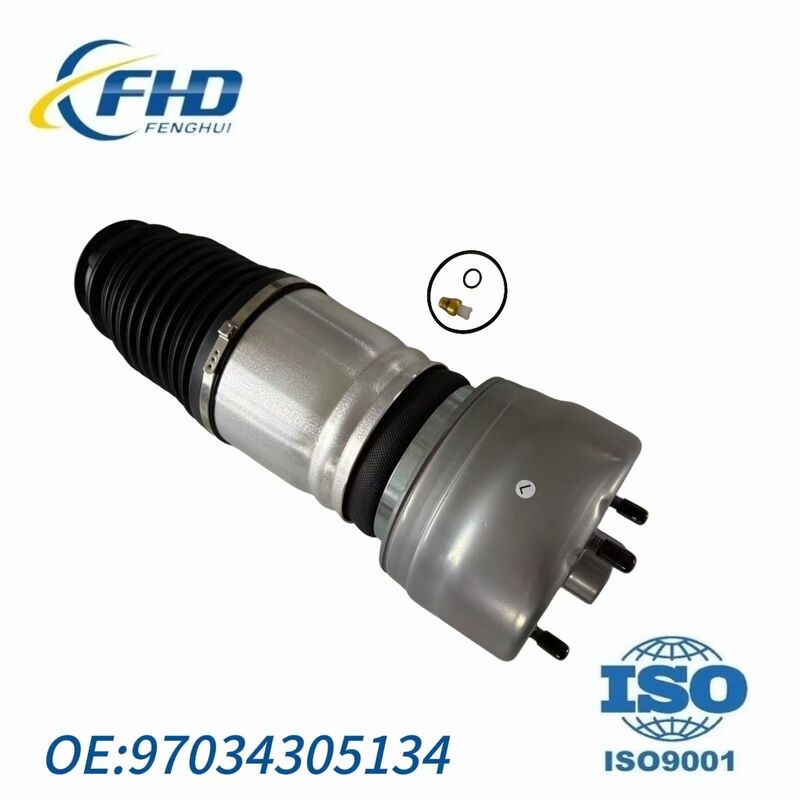

97034305134 Porsche Panamera Front Left Repair Kit Assembly New Quality

Frequently Asked Questions

Q1: How can I tell whether the Panamera 970 front left air spring seals have already aged?

Common signs of aging include: slight sinking (approximately 10-20mm) of the left front body side after the vehicle sits overnight, the air compressor running slightly more frequently than normal after starting, occasional faint "hissing" sounds from the left front wheel when going over bumps, and a "Chassis System Fault" warning on the dashboard that sometimes disappears after restarting. Due to its proximity to the exhaust pipe and long-term driver load, seal aging on the left side typically occurs slightly faster than on the right side. A simple diagnostic method: after stopping the vehicle and turning off the engine, spray soapy water at the connection between the air spring upper cap and the air spring, and observe if fine bubbles slowly emerge.

Q2: What is the difference between OE 97034305134 and 97034305115?

They are interchangeable versions for the same position, with identical specifications and dimensions. 97034305134 is the primary OE part number, while 97034305115 is an alternative or associated number. When purchasing, simply confirm the front left position; either part number is acceptable.

Q3: Is the front left repair kit interchangeable with the front right repair kit?

No, they are not interchangeable. The front left OE 97034305134 and front right OE 97034305234 differ in seal ring dimensions and installation accessories. The front left air spring operates near the exhaust pipe in a higher-temperature environment, so the seal design is slightly different. Before purchasing, please confirm the required position.

Q4: Is it acceptable to replace only the repair kit and keep the old air spring?

Yes, they can be used together, but two conditions must be met: First, the original air spring must be in good condition – no obvious cracks, no bulging, no rubber hardening. Second, the air spring should generally have no more than 80,000 km of service. As a sporty sedan, the Panamera's front air spring experiences greater stress. The left side, being near the exhaust pipe, has a higher risk of rubber aging. If the air spring already shows rubber cracking, replacing the complete air spring assembly at the same time is recommended.

Q5: After replacing the repair kit, the instrument panel shows a "Chassis System Fault" warning, but the vehicle drives normally. What is the cause?

This situation is usually not a problem with the repair kit itself, but rather the air suspension system has not been reset after installation. After replacing front seals on a Porsche 970, a diagnostic tool (such as PIWIS or a compatible device) is required to perform "level calibration" and "component learning" on the air suspension system. The left height sensor is located on the driver's side, and calibration requires ensuring the sensor link angle is correct. It is recommended to connect a diagnostic tool after installation, clear the fault codes, and perform front axle height initialization.

Q6: What accessories are recommended to replace at the same time as the front left repair kit?

It is recommended to replace the following accessories simultaneously: the air spring upper cap seal ring (may deform after removal), the air line connector seal ring (loses elasticity after aging), and the upper mount fixing nut (self-locking nut loses locking force after removal). In addition, check the left front height sensor link for integrity, check whether the distribution valve is functioning properly, and check whether the compressor dryer is saturated. Because the left side is near the exhaust pipe, also check whether the exhaust pipe heat shield is intact to prevent high heat from accelerating seal aging.

Q7: After replacing the repair kit, the front suspension feels stiffer or bumpier than before. Is this normal?

This is uncommon. Replacing the repair kit does not change the air spring's load-bearing characteristics or the shock absorber core's damping settings, so it should not theoretically change suspension firmness or softness. If there is noticeable stiffness or bumpiness, possible causes include: 1) Height calibration has not been performed, resulting in incorrect air spring pressure; 2) The upper mount is installed incorrectly, creating rigid contact with the body; 3) The dust boot is misaligned. It is recommended to first check the installation, then perform height calibration using a diagnostic tool.

Q8: There is a "creaking" or "squeaking" noise from the left front wheel area while driving after replacing the repair kit. What is the cause?

This type of noise is usually not a problem with the repair kit itself, but rather caused during installation. Common causes include: 1) The upper mount fixing bolts are not tightened to the specified torque; 2) The dust boot is not installed properly and is rubbing against the shock absorber core body; 3) The height sensor link was bent or stuck during removal; 4) The stabilizer bar link ball joint is aged – unrelated to the repair but misdiagnosed; 5) The exhaust pipe heat shield is loose, interfering with the upper mount (unique to the left side). It is recommended to first check the upper mount bolt torque and dust boot position, then inspect other accessories if the noise persists.

Q9: Is a wheel alignment (chassis angle calibration) necessary after replacing the Panamera 970 front left repair kit?

Generally not necessary. Replacing the repair kit only involves seals, the upper mount, and the dust boot – not control arms, steering knuckles, or other alignment-related components. However, if the upper or lower control arm mounting bolts were disconnected during the replacement process, then a wheel alignment is recommended. If only the seals and upper mount were replaced, alignment is not required.

Q10: Is OE 97034305134 suitable for the newer generation Panamera 971?

No, it is not suitable. The 971 is the next-generation Panamera launched in 2017, with a completely different front air suspension structure and seal specifications. Parts are not interchangeable with the 970. Before purchasing, please confirm that your vehicle is the 970 chassis (2009-2016 model years), which can be verified via VIN code or vehicle registration information.

Q11: Why does the front left seal age faster than the front right?

From repair practice, the 970 front left air spring seal has a slightly higher reported failure rate than the right. Main reasons include: 1) Long-term driver-side load, with the air spring bearing greater average pressure; 2) The left side is near the exhaust pipe, receiving more heat exposure, accelerating rubber aging; 3) Transmission offset, with more weight distributed on the left side; 4) During daily driving, the driver is always in the vehicle, so the left air spring undergoes slightly more inflation/deflation cycles than the right. It is recommended to prioritize checking the left side seals during inspection.

Q12: Why does the air compressor run frequently after replacing the front left repair kit?

If the air compressor still runs frequently after replacing the repair kit, possible causes include: 1) Height calibration has not been performed, and the system is still operating based on the old seal height parameters; 2) The compressor dryer is saturated, affecting inflation efficiency; 3) The compressor itself is aged, slowing down inflation speed; 4) There is still a leak after installation (seal ring or air line connector issue); 5) The distribution valve has an internal leak. The Panamera 970 compressor has been in service for many years, so dryer saturation and pump aging are common. It is recommended to first perform height calibration using a diagnostic tool. If the problem persists, check the compressor dryer and distribution valve condition.

Q13: Should the Panamera 970 front repair kits be replaced on both sides simultaneously?

Simultaneous replacement is recommended. Although it is possible to replace only the side that has aged severely, both seals have been in service for the same number of years and have similar rubber aging. Aging on one side often indicates the other side is also near the end of its service life. The left side operates in a harsher environment due to proximity to the exhaust pipe. After replacing only the left side, the right side may develop aging and leaks in the short term. Simultaneous replacement avoids the other side failing shortly after and ensures consistent seal condition on both sides. If you plan to keep the vehicle for more than 2 years, replacing both sides simultaneously is a more reliable choice.

Q14: How can I confirm whether my Panamera 970 needs front left seal replacement?

Recommended inspection methods: 1) Raise the vehicle and visually inspect the connection between the left air spring upper cap and the air spring for oil residue or rubber powder; 2) Use a diagnostic tool to read the air suspension system for fault codes such as "System Leak" or "Height Not Adjustable" – the left sensor may report separately; 3) Record the height change of the vehicle after sitting overnight – if the left side sinks more than the right by more than 15mm, the left seal has aged. If any of the above conditions are present, front left repair kit replacement is recommended.
