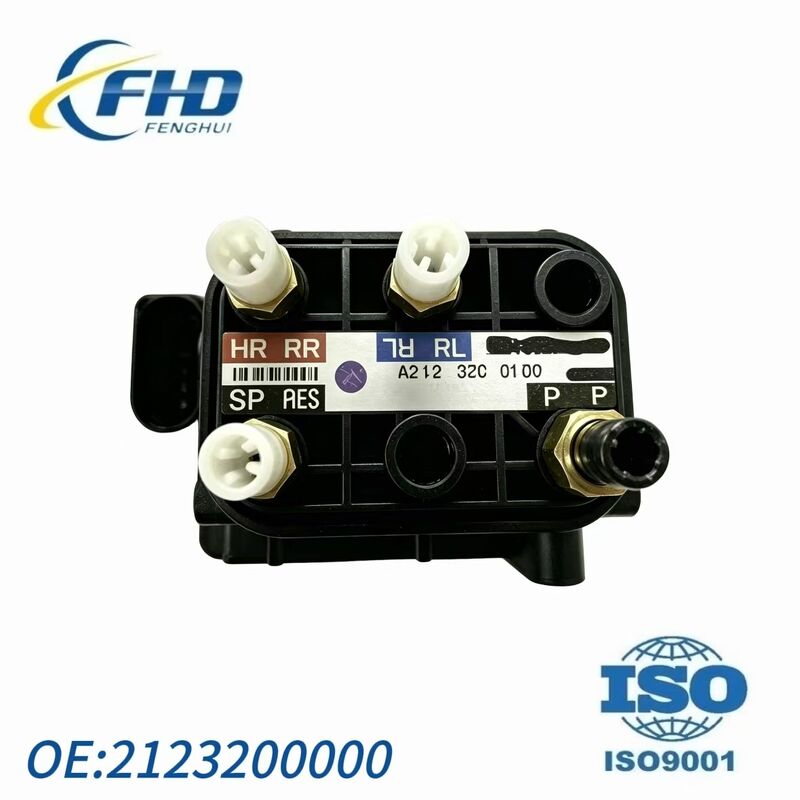

2123200000 Mercedes-Benz E Class W212 Air Suspension Valve Block
| Place of Origin | China |
| Brand Name | FHD |
| Certification | ISO 9001 |
| Model Number | Mercedes Benz W212/W218 |
Mercedes-Benz E Class W212 air suspension valve
,W212 air suspension valve block
,Mercedes-Benz E Class valve block
The 2123200000 is an air suspension valve block developed specifically for the Mercedes-Benz W212 E-Class AMG models and same-platform CLS AMG vehicles. It serves as a critical control component within the Airmatic air suspension system, responsible for distributing high-pressure air generated by the compressor to each wheel's air strut as directed by the suspension control module. Through independent pressure regulation of all four wheels, it maintains the standard ride height and driving stability.
This valve block incorporates multiple solenoid valves internally, precisely controlled by the suspension control unit (ECU) based on signals from the ride height sensors. Additionally, the air suspension system's pressure sensor is also located within the valve block, responsible for monitoring system pressure and feeding signals back to the ECU – if this sensor malfunctions, the compressor will not receive the start command, preventing the system from building air pressure.
Over time, the O-ring seals inside the valve block may age and crack, leading to air leaks. This can cause the compressor to run frequently or even fail prematurely, while moisture intrusion may also corrode the solenoid valve components, triggering a range of pneumatic system failures. When the original valve block malfunctions due to aged seals, sticky solenoids or internal contamination, this product serves as a reliable replacement solution for restoring the Airmatic system to proper working order.
| Parameter | Specification |
|---|---|
| Product Name | Air Suspension Solenoid Valve Block / Distribution Block |
| Compatible System | Mercedes-Benz Airmatic Air Suspension (Option Code 488) |
| Installation Type | Direct Replacement (OE-Spec Plug-and-Play) |
| Number of Ports | 5 |
| Port Type | Push-to-Connect |
| Location | Rear Area of Vehicle |
| Applicable Configuration | Steel Spring and Air Suspension Combination System (Code 488) |
This product is compatible with the following AMG models equipped with the Airmatic air suspension system (Option Code 488):
| Model | Chassis Code | Model Years |
|---|---|---|
| E63 AMG (including 4MATIC) | W212 | 2010–2016 |
| E63 AMG S 4MATIC | W212 | 2014–2016 |
| CLS63 AMG (including 4MATIC) | C218 | 2012–2014 |
| CLS63 AMG S 4MATIC | C218 | 2014–2018 |
Configuration Note: This product only applies to AMG models equipped with the Airmatic air suspension system (Option Code 488). Standard E-Class (non-AMG) models and those without the air suspension option are not compatible. W212 E-Class Touring models with rear-axle air suspension use a different valve block variant.
| Number Type | Part Number |
|---|---|
| Primary OE Number | 2123200000 |
| Full Mercedes Format | A 212 320 00 00 |
| Associated OE Number | 2123200858 |
| Associated OE Number | A2123200858 |
| Associated OE Number | 2123200458 |
| Arnott Equivalent | VB-3833 |
OE-Grade Quality: RAPA original OES-quality valve block featuring high-quality O-ring seals and electrical components, designed to meet or exceed original equipment standards.
Independent Four-Wheel Air Distribution: The valve block independently controls inflation and deflation of each air spring via internal solenoid valves, enabling precise vehicle posture adjustment and automatic level control.
Integrated Pressure Sensor: The valve block incorporates the air suspension system's pressure sensor. If this sensor fails, the compressor will be unable to start and system pressure cannot be built.
Convenient Fault Diagnosis: When one side of the vehicle sits too low, a quick diagnostic method is to swap the airlines between the low side and normal side on the valve block – if the problem transfers to the other side, the valve block is faulty; if the problem remains on the same side, the air spring is leaking.
Optimised Sealing: Features high-quality O-ring seals that effectively prevent air leaks and moisture intrusion into the solenoid valve components, protecting the compressor from overload damage caused by system leaks.
Keep dry, clean and handle with care.
Think Global, Act Local. Proven Worldwide.
| Question | Answer |
|---|---|
| Q1: How can I tell if the distributor valve is faulty rather than an air spring leaking? | The typical sign of distributor valve failure is similar to air spring leaks – one or more corners of the vehicle sitting too low and failing to raise. A diagnostic method is to swap the airline from the low corner with the airline from a normal corner on the distributor valve. If the problem transfers to the other side, the distributor valve is faulty; if the problem remains on the original side, the air spring is likely leaking. |
| Q2: Should I replace the distributor valve at the same time as the compressor? | It is strongly recommended to replace them simultaneously. When the compressor fails due to wear and age, fine metallic debris from the wear process can circulate through the air system and enter the distributor valve, causing solenoid valves to stick or seals to become damaged. If only the compressor is replaced while ignoring the distributor valve, the new compressor may prematurely fail again due to blockages in the distributor valve. |
| Q3: How do I correctly connect the ports on the distributor valve? | This distributor valve features colour-coded ports – different colours correspond to different connection points (compressor, each wheel air spring, etc.). Simply match the colours to the original vehicle's lines to complete the correct connection, effectively avoiding incorrect hose routing. |
