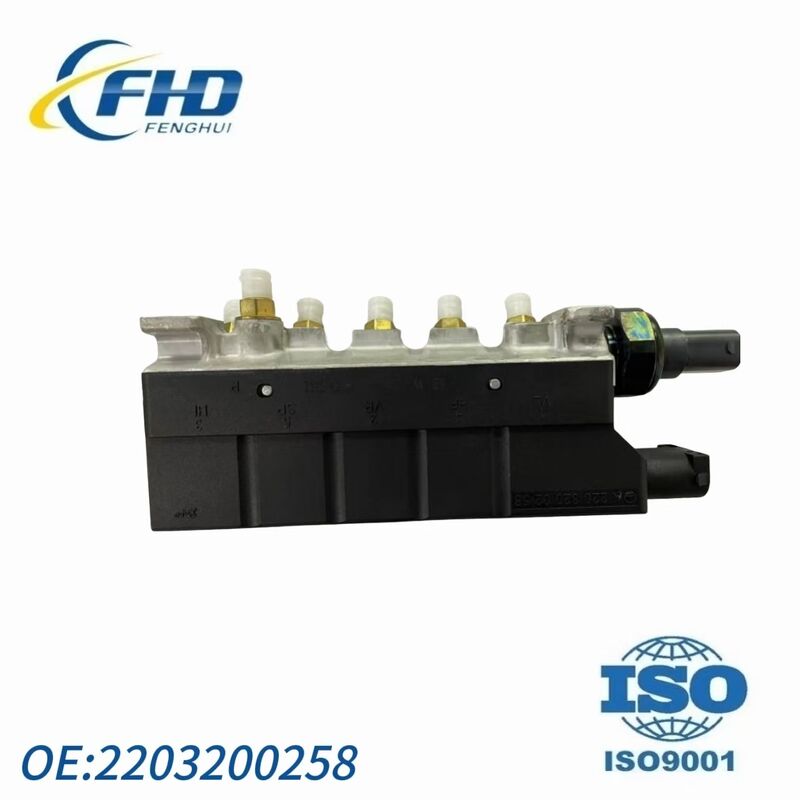

2203200258 Mercedes-Benz S Class W220 Air Suspension Valve Block
|
2203200258 Mercedes-Benz S Class W220 Air Suspension Valve Block
| Place of Origin | China |
| Brand Name | FHD |
| Certification | ISO 9001 |
| Model Number | Mercedes-Benz W220 S-Class |
Product Details
Number Of Ports:
6
Port Type:
Push-to-Connect
Connector Shape:
Oval
Number Of Terminals:
3-Pin
Material:
High-Strength Fatigue-Resistant Plastic
Included Accessories:
O-ring Seals
Highlight:
Mercedes-Benz S Class air suspension valve
,W220 air suspension valve block
,Mercedes air suspension valve block
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
Carton
Delivery Time
3-15days
Payment Terms
D/A,D/P,T/T,Western Union
Supply Ability
5000 Sets/month
Product Description
2203200258 Mercedes-Benz S Class W220 Air Suspension Valve Block
2203200258 Mercedes-Benz S Class W220 Air Suspension Valve Block
Product Introduction
The 2203200258 is an air suspension solenoid valve block developed specifically for the Mercedes-Benz W220 S-Class. It serves as a core control component within the AIRmatic air suspension system, responsible for distributing high-pressure air generated by the compressor to each individual wheel's air spring as directed by the suspension control module. Through independent pressure regulation of all four wheels, it maintains the standard ride height and driving stability.
The valve block incorporates multiple solenoid valves internally, precisely controlled by the suspension control unit based on signals from the ride height sensors. The AIRmatic system continuously monitors the air pressure inside the valve block - once it detects pressure falling below the threshold, the instrument cluster displays the warning message "AIRMATIC STOP, CAR TOO LOW!" The valve block also integrates a pressure sensor that constantly monitors internal system pressure and relays the data back to the control unit.
The valve block typically features 6 air ports: 1 inlet from the compressor, 4 outlets to each wheel air spring, and 1 port to the accumulator tank. Each port features colour coding for easy identification and correct connection during installation.
Over time, the O-ring seals inside the valve block may age and crack, leading to air leaks. This can cause the compressor to run frequently or even "burn out", while moisture intrusion may also corrode the solenoid valve components. When the original valve block malfunctions due to aged seals, sticky solenoids or internal contamination, this product serves as a reliable replacement solution for restoring the AIRmatic system to proper working order.
Specification Sheet
| Parameter | Specification |
|---|---|
| Product Name | Air Suspension Solenoid Valve Block / Distribution Block |
| Compatible System | Mercedes-Benz AIRmatic Air Suspension |
| Installation Type | Direct Replacement (OE-Spec Plug-and-Play) |
| Number of Ports | 6 |
| Port Type | Push-to-Connect |
| Connector Shape | Oval |
| Number of Terminals | 3-Pin |
| Material | High-Strength Fatigue-Resistant Plastic |
| Included Accessories | O-ring Seals |
| Not Applicable To | Vehicles with Active Body Control (Code 487) |
Applicable Models
This product is compatible with the following Mercedes-Benz models equipped with the AIRmatic air suspension system:
| Model | Chassis Code | Model Years |
|---|---|---|
| S350 | W220 | 2006 |
| S430 (including 4MATIC) | W220 | 2000-2006 |
| S500 (including 4MATIC) | W220 | 2000-2006 |
| S600 | W220 | 2001-2006 |
| S55 AMG | W220 | 2001-2006 |
| S63 AMG | W220 | 2000-2005 |
| S65 AMG | W220 | 2006 |
| S280 / S320 CDI / S400 CDI | W220 | 1998-2005 |
Configuration Note: Suitable for W220 S-Class models equipped with AIRmatic air suspension (Code 489), covering both rear-wheel drive and 4MATIC all-wheel drive variants. Not suitable for models equipped with Active Body Control (ABC, Code 487).
Replacement OE Part Numbers
| Number Type | Part Number |
|---|---|
| Primary OE Number | 2203200258 |
| Full Mercedes Format | A2203200258 |
| Simplified Format | 220 320 02 58 |
| Arnott Equivalent | VB-3506 |
| RMT Equivalent | M220-A225-AD4U |
| KAMOKA Equivalent | 2078004 |
| MEAT & DORIA Equivalent | 58208 |
Product Features
- Independent Four-Wheel Air Distribution: The valve block independently controls inflation and deflation of each air spring via internal solenoid valves, enabling precise vehicle posture adjustment and automatic level control.
- Integrated Pressure Sensor: The valve block incorporates the air suspension system's pressure sensor, continuously monitoring internal system pressure and feeding signals back to the ECU. When internal pressure falls below the threshold, the system triggers a dashboard warning.
- OE-Grade Quality: Features high-quality O-ring seals and electrical components, with laboratory electrical and pneumatic testing. Designed to meet or exceed original equipment standards.
- Colour-Coded Port Design: Each port features colour coding for easy identification of connection lines for the compressor, each wheel air spring and the accumulator tank during installation, effectively preventing incorrect connections and enabling quick installation.
- High-Strength Fatigue-Resistant Material: Manufactured from high-strength fatigue-resistant plastic, ensuring dimensional stability and minimising air pressure leaks, extending the product's service life.
Warehouse & Workshop
Keep dry, clean and handle with care.
Global Exhibitions
Think Global, Act Local. Proven Worldwide.
Frequently Asked Questions
Q1: How can I tell if the valve block is faulty rather than an air spring leaking?
The typical sign of valve block failure is similar to air spring leaks - one or more corners of the vehicle sitting too low and failing to raise, with a "AIRMATIC STOP, CAR TOO LOW!" warning potentially appearing on the instrument cluster. A diagnostic method is to swap the airline from the low corner with the airline from a normal corner on the valve block. If the problem transfers to the other side, the valve block is faulty; if the problem remains on the same side, the air spring is likely leaking. If the system pressure is too low, it may indicate that the valve block has a leak or is damaged.
Q2: Should I replace the valve block at the same time as the compressor?
When the compressor fails due to wear and age, fine metallic debris from the wear process can circulate through the air system and enter the valve block, causing solenoid valves to stick or seals to become damaged. Additionally, aged and cracked O-ring seals in the valve block can lead to air leaks, overworking the compressor and even burning it out. If the compressor has been severely damaged, it is strongly recommended to replace the valve block simultaneously to prevent the new pump from prematurely failing again due to blockages or leaks in the valve block.
Q3: Is this valve block suitable for W220 S-Class models equipped with ABC?
No. This product is only compatible with W220 S-Class models equipped with the AIRmatic air suspension system (Code 489). It is not suitable for models equipped with Active Body Control (ABC, Code 487). Please confirm the original vehicle's suspension system type before purchase.
