37206799419 BMW X5 E70 06-13 Air Suspension Valve Block Unit New Replacement
|
37206799419 BMW X5 E70 06-13 Air Suspension Valve Block Unit New Replacement
| Place of Origin | China |
| Brand Name | FHD |
| Certification | ISO 9001 |
| Model Number | BMW X5(E70) X6(E71/E72) 07-13 |
Product Details
Number Of Ports:
6
Port Type:
Push-to-Connect
Material:
High-Strength Fatigue-Resistant Plastic
Included Accessories:
O-ring Seals
Compatible System:
BMW Adaptive Air Suspension
Installation Location:
Spare Wheel Well Or Rear Area
Highlight:
BMW X5 E70 air suspension valve block
,BMW X5 E70 valve block replacement
,BMW X5 E70 air suspension unit
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
Carton
Delivery Time
3-15days
Payment Terms
D/A,D/P,T/T,Western Union
Supply Ability
5000 Sets/month
Product Description

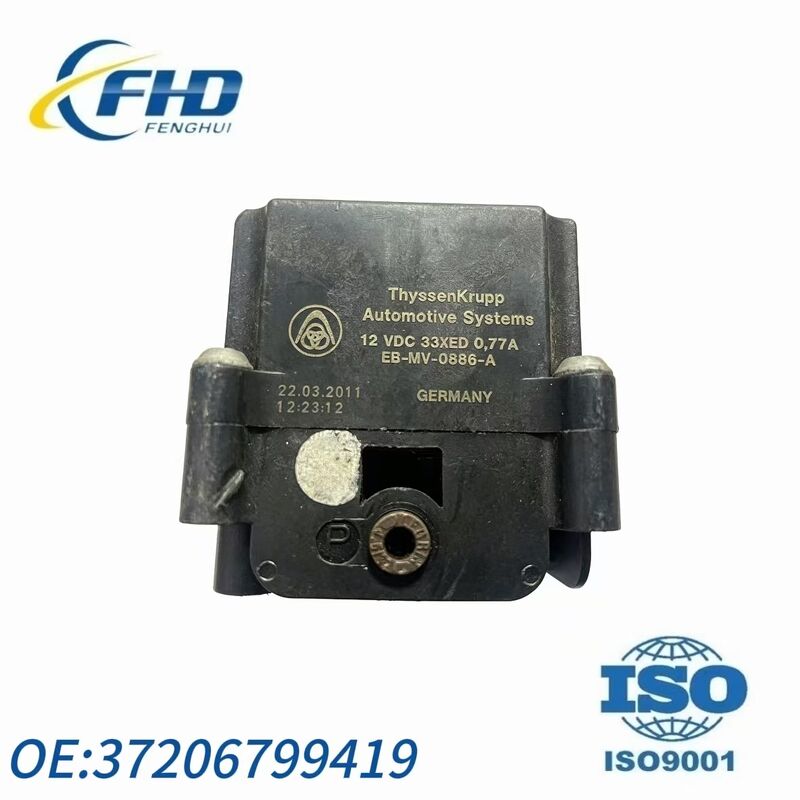

37206799419 BMW X5 E70 06-13 Air Suspension Valve Block Unit New Replacement
Product Overview
The 37206799419 is an original-equipment-grade air suspension solenoid valve block specifically developed for BMW E70 X5 and E71 X6 models. This core control component distributes high-pressure air from the compressor to each wheel's air spring as directed by the suspension control module, maintaining standard ride height and driving stability through independent pressure regulation.
The valve block features multiple internally controlled solenoid valves and 6 color-coded air ports for easy identification and correct installation: 1 inlet from the compressor, 4 outlets to wheel air springs, and 1 port to the accumulator tank.
Technical Specifications
| Product Name | Air Suspension Solenoid Valve Block / Distribution Block |
| Compatible System | BMW Adaptive Air Suspension |
| Installation Location | Spare Wheel Well or Rear Area |
| Installation Type | Direct Replacement (OE-Spec Plug-and-Play) |
| Number of Ports | 6 |
| Port Type | Push-to-Connect |
| Material | High-Strength Fatigue-Resistant Plastic |
| Included Accessories | O-ring Seals |
Compatible Models
| Model | Chassis Code | Model Years |
|---|---|---|
| X5 (all variants) | E70 | 2006–2013 |
| X5 M | E70 | 2009–2013 |
| X6 (all variants) | E71 | 2008–2014 |
| X6 M | E71 | 2009–2014 |
Configuration Note: Suitable for models equipped with adaptive air suspension. Covers various powertrain configurations including xDrive30i, xDrive35i, xDrive40d, xDrive50i, X5 M, X6 M and others. Not suitable for models equipped with steel spring suspension.
Replacement Part Numbers
| Number Type | Part Number |
|---|---|
| Primary OE Number | 37206799419 |
| Full BMW Format | 37 20 6 799 419 |
| Associated OE Number | 37206769904 |
| Associated OE Number | 37206779415 |
| Associated OE Number | 37206782898 |
| Associated OE Number | 37206864405 |
| Associated OE Number | 37206875171 |
| Associated OE Number | 37206875172 |
| Arnott Equivalent | VB-3450 |
Product Features
- Independent Four-Wheel Air Distribution: Independently controls inflation and deflation of each air spring via internal solenoid valves, enabling precise vehicle posture adjustment and automatic level control.
- OE-Grade Quality: Features high-quality O-ring seals and electrical components with rigorous electrical and pneumatic testing. Designed to meet or exceed original equipment standards.
- Color-Coded Port Design: Each port features color coding for easy identification of connection lines, preventing incorrect connections and enabling quick installation.
- Optimized Sealing Design: Equipped with high-quality O-ring seals that effectively prevent air leaks and moisture intrusion, protecting the compressor from overload damage.
- High-Strength Fatigue-Resistant Material: Manufactured from high-strength fatigue-resistant plastic, ensuring dimensional stability and minimizing air pressure leaks for extended service life.
Warehouse & Workshop
Keep dry, clean and handle with care.
Global Exhibitions
Think Global, Act Local. Proven Worldwide.
Frequently Asked Questions
Q1: How can I tell if the valve block is faulty rather than an air spring leaking?
The typical sign of valve block failure is similar to air spring leaks – one or more corners of the vehicle sitting too low and failing to raise. A diagnostic method is to swap the airline from the low corner with the airline from a normal corner on the valve block. If the problem transfers to the other side, the valve block is faulty; if the problem remains on the same side, the air spring is likely leaking.
Q2: Should I replace the valve block at the same time as the compressor?
When the compressor fails due to wear and age, fine metallic debris from the wear process can circulate through the air system and enter the valve block, causing solenoid valves to stick or seals to become damaged. If the compressor has been severely damaged, it is strongly recommended to replace the valve block simultaneously to prevent the new pump from prematurely failing again due to blockages. Replacing only the compressor while ignoring the valve block may result in the new pump failing again due to internal blockages or leaks.
Q3: Is this valve block compatible with all E70 X5 and E71 X6 models equipped with air suspension?
Yes. This product is specifically designed for the E70 X5 and E71 X6 platform, covering all models equipped with adaptive air suspension, including standard X5, X6 and the high-performance X5 M and X6 M variants. It can be used as long as the original part number matches 37206799419.
