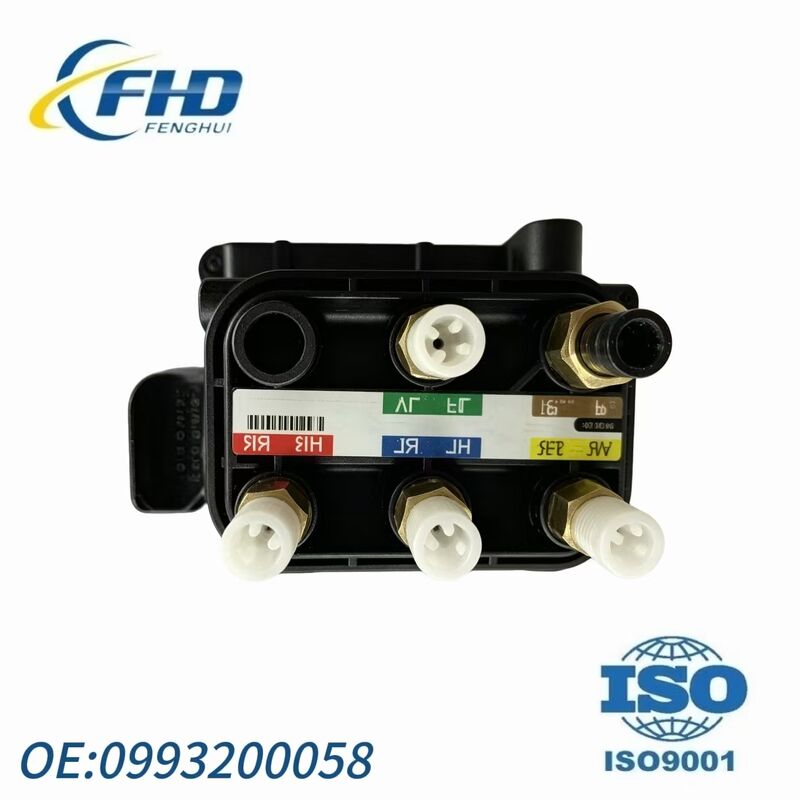

0993200058 Mercedes-Benz S Class W222 Air Suspension Distributor Valve
| Place of Origin | China |
| Brand Name | FHD |
| Certification | ISO 9001 |
| Model Number | Mercedes Benz W222/S400/S500 |
Mercedes-Benz S Class air suspension valve
,W222 air suspension distributor valve
,Mercedes air suspension valve with warranty
The 0993200058 is an air suspension solenoid distributor valve developed specifically for the Mercedes-Benz S-Class W222 and same-platform models. It serves as a core control component within the AIRmatic air suspension system, responsible for distributing high-pressure air generated by the compressor to each individual wheel's air spring as required.
As the "central nervous system" of the air suspension system, the distributor valve incorporates multiple solenoid valves internally, precisely controlled by the suspension control unit based on signals from the ride height sensors. The distributor valve typically features 5 air ports: 1 inlet from the compressor and 4 outlets to each wheel air spring.
Over time, the O-ring seals inside the distributor valve may age and crack, leading to air leaks. This can cause the compressor to run frequently or even fail prematurely. When the original distributor valve malfunctions due to aged seals, sticky solenoids or internal contamination, this product serves as a reliable replacement solution for restoring the AIRmatic system to proper working order.
| Product Name | Air Suspension Solenoid Distributor Valve |
|---|---|
| Compatible System | Mercedes-Benz AIRmatic Air Suspension |
| Installation Type | Direct Replacement (Plug-and-Play OE Replacement) |
| Number of Ports | 5 |
| Port Type | Push-to-Connect |
| Connector Shape | Oval |
| Number of Terminals | 3-Pin |
| Weight | Approx. 0.65 kg |
| Included Accessories | Mounting Hardware, O-ring Seals |
| Model | Chassis Code | Model Years |
|---|---|---|
| S-Class (including 4MATIC) | W222 | 2014-2021 |
| S-Class Coupe | C217 | 2015-2021 |
| Maybach S-Class | W222 / X222 | 2016-2020 |
| C-Class (with optional air suspension, code 489) | W205 | 2015-2021 |
| C-Class Coupe | C205 | 2017-2021 |
| Number Type | Part Number |
|---|---|
| Primary OE Number | 0993200058 |
| Full Mercedes Format | A0993200058 |
| Associated OE Number | 0993200200 |
| Associated OE Number | A0993200200 |
| Arnott Equivalent | VB-3427 |
- Independent Four-Wheel Air Distribution: The distributor valve independently controls inflation and deflation of each air spring via internal solenoid valves, enabling precise vehicle posture adjustment and automatic level control.
- Integrated Pressure Sensor: The distributor valve incorporates the air suspension system's pressure sensor, which monitors system pressure and feeds signals back to the ECU. If this sensor fails, the compressor will be unable to start properly.
- Laboratory Electrical and Pneumatic Testing: The product undergoes rigorous electrical and pneumatic testing to ensure stable and reliable performance.
- Colour-Coded Design: Each port features colour coding for easy identification of different lines during installation, effectively preventing incorrect connections and enabling quick installation.
- High-Strength Fatigue-Resistant Material: Manufactured from high-strength fatigue-resistant plastic, ensuring dimensional stability and minimising air pressure leaks.
Keep dry, clean and handle with care.
Think Global, Act Local. Proven Worldwide.
| Question | Answer |
|---|---|
| Q1: How can I tell if the distributor valve is faulty rather than an air spring leaking? | The typical sign of distributor valve failure is similar to air spring leaks - one or more corners of the vehicle sitting too low and failing to raise. A diagnostic method is to swap the airline from the low corner with the airline from a normal corner on the distributor valve. If the problem transfers to the other side, the distributor valve is faulty; if the problem remains on the same side, the air spring is likely leaking. |
| Q2: Should I replace the distributor valve at the same time as the compressor? | It is strongly recommended to replace them simultaneously. When the compressor fails due to wear and age, fine metallic debris from the wear process can circulate through the air system and enter the distributor valve, causing solenoid valves to stick or seals to become damaged. If only the compressor is replaced while ignoring the distributor valve, the new compressor may prematurely fail again due to blockages in the distributor valve. |
| Q3: How do I correctly connect the ports on the distributor valve? | This distributor valve features colour-coded ports - different colours correspond to different connection points (compressor, each wheel air spring, etc.). Simply match the colours to the original vehicle's lines to complete the correct connection, effectively avoiding incorrect hose routing. |
