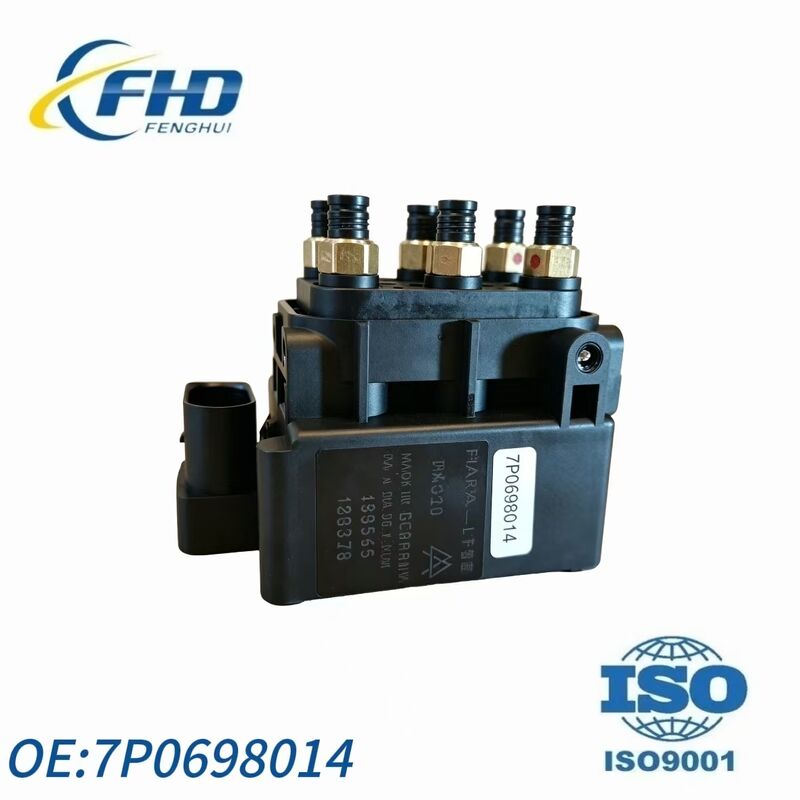

7P0698014 Audi Q7 4L Air Suspension Valve Block Unit New Replacement
|
7P0698014 Audi Q7 4L Air Suspension Valve Block Unit New Replacement
| Place of Origin | China |
| Brand Name | FHD |
| Certification | ISO 9001 |
| Model Number | Audi Q7/VW Touareg/Hyundai/Porsche/Jeep Cherokee/Tesla S |
Product Details
Installation Location:
Front Axle Area
Installation Type:
Direct Replacement (OE-Spec Plug-and-Play)
Number Of Ports:
6 (1 Inlet, 4 Outlets, 1 Accumulator Port)
Port Type:
Push-to-Connect
Material:
High-Strength Fatigue-Resistant Plastic
Included Accessories:
Mounting Hardware, O-ring Seals
Highlight:
Audi Q7 air suspension valve block
,4L air suspension valve unit
,replacement air suspension valve block
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
Carton
Delivery Time
3-15days
Payment Terms
D/A,D/P,T/T,Western Union
Supply Ability
5000 Sets/month
Product Description
7P0698014 Audi Q7 4L Air Suspension Valve Block Unit New Replacement
The 7P0698014 is an air suspension solenoid valve block developed specifically for the Audi Q7 4L platform and multiple same-platform models (including the Volkswagen Touareg and Porsche Cayenne). It serves as a critical control component within the vehicle's adaptive air suspension system, responsible for distributing high-pressure air generated by the compressor to each individual wheel's air spring as directed by the suspension control module.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | Air Suspension Solenoid Distributor Valve |
| Compatible System | Audi Adaptive Air Suspension |
| Installation Location | Front Axle Area |
| Installation Type | Direct Replacement (OE-Spec Plug-and-Play) |
| Number of Ports | 6 (1 inlet, 4 outlets, 1 accumulator port) |
| Port Type | Push-to-Connect |
| Material | High-Strength Fatigue-Resistant Plastic |
| Included Accessories | Mounting Hardware, O-ring Seals |
Compatible Models
| Model | Chassis Code | Model Years |
|---|---|---|
| Audi Q7 (all variants) | 4L (4LB, 4LD) | 2006–2015 |
| Audi A4 Allroad | B8 (8KH) | 2009–2016 |
| Audi A5 (with optional adaptive suspension) | 8T | 2007–2016 |
| Audi Q5 (with optional air suspension) | 8R | 2008–2017 |
| VW Touareg (with optional air suspension) | 7L | 2002–2010 |
| Porsche Cayenne (with optional air suspension) | 955 / 957 | 2003–2010 |
Configuration Note: Suitable for models equipped with adaptive air suspension, covering various powertrain configurations including 3.0 TDI, 3.0 TFSI, 3.6 FSI, 4.2 TDI, 4.2 FSI, 6.0 W12 TDI (Q7 V12 TDI) and others. Not suitable for models equipped with steel spring suspension.
Replacement Part Numbers
| Number Type | Part Number |
|---|---|
| Primary OE Number | 7P0698014 |
| Associated OE Number | 7P0698014A |
| Associated OE Number | 7L0698014 |
| Associated OE Number | 7L0698014A |
| Associated OE Number | 95535800750 |
| Arnott Equivalent | VB-3154 |
Product Features
- Independent Four-Wheel Air Distribution: The valve block independently controls inflation and deflation of each air spring via internal solenoid valves, enabling precise vehicle posture adjustment and automatic level control.
- Cross-Platform Compatibility: As a common component of the PL71 platform, this valve block is highly compatible with the air suspension systems of Audi Q7 (4L), Volkswagen Touareg (7L) and Porsche Cayenne (955/957) – one product covering multiple brands.
- OE-Grade Quality: Features high-quality O-ring seals and electrical components, with rigorous electrical and pneumatic testing. Designed to meet or exceed original equipment standards.
- Colour-Coded Port Design: Each port features colour coding for easy identification of connection lines for the compressor, each wheel air spring and the accumulator tank during installation, effectively preventing incorrect connections and enabling quick installation.
Warehouse & Workshop
Keep dry, clean and handle with care.
Global Exhibitions
Think Global, Act Local. Proven Worldwide.
Frequently Asked Questions
| Question | Answer |
|---|---|
| Q1: How can I tell if the valve block is faulty rather than an air spring leaking? | The typical sign of valve block failure is similar to air spring leaks – one or more corners of the vehicle sitting too low and failing to raise. A diagnostic method is to swap the airline from the low corner with the airline from a normal corner on the valve block. If the problem transfers to the other side, the valve block is faulty; if the problem remains on the same side, the air spring is likely leaking. |
| Q2: Should I replace the valve block at the same time as the compressor? | When the compressor fails due to wear and age, fine metallic debris from the wear process can circulate through the air system and enter the valve block, causing solenoid valves to stick or seals to become damaged. If the compressor has been severely damaged, it is strongly recommended to replace the valve block simultaneously to prevent the new pump from prematurely failing again due to blockages in the valve block. |
| Q3: Is this valve block compatible with Volkswagen Touareg or Porsche Cayenne? | Yes. This valve block is a common PL71 platform component and can be used across brands. Audi Q7 (4L), Volkswagen Touareg (7L) and Porsche Cayenne (955/957) share the same universal design for core air suspension components (compressor, valve block, etc.). It can be used as long as the original part number matches 7P0698014. |
